Description
Package Included

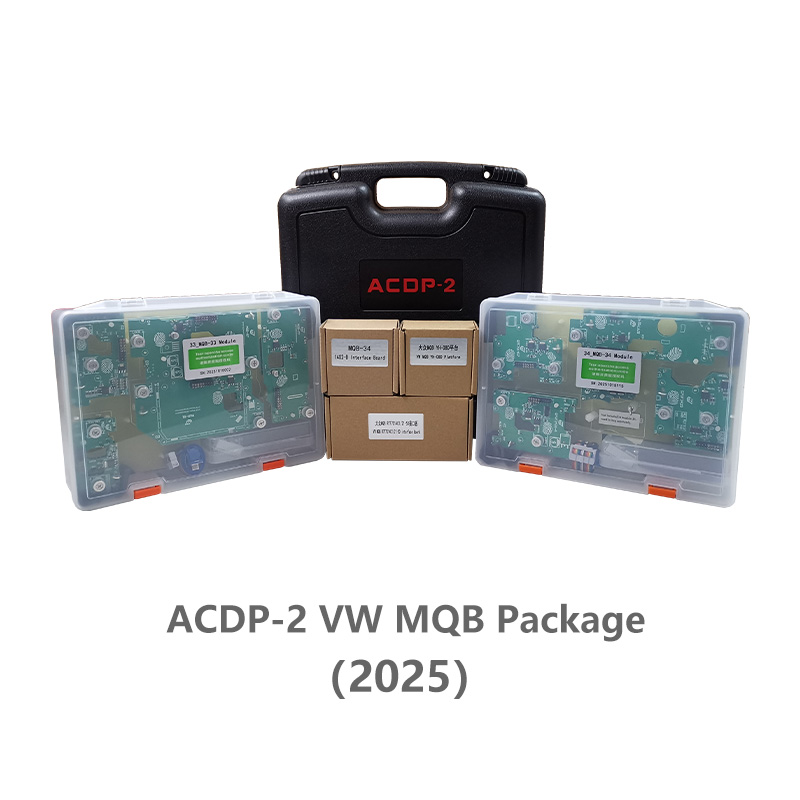

Package Included
-
ACDP-2 Programming Module
-

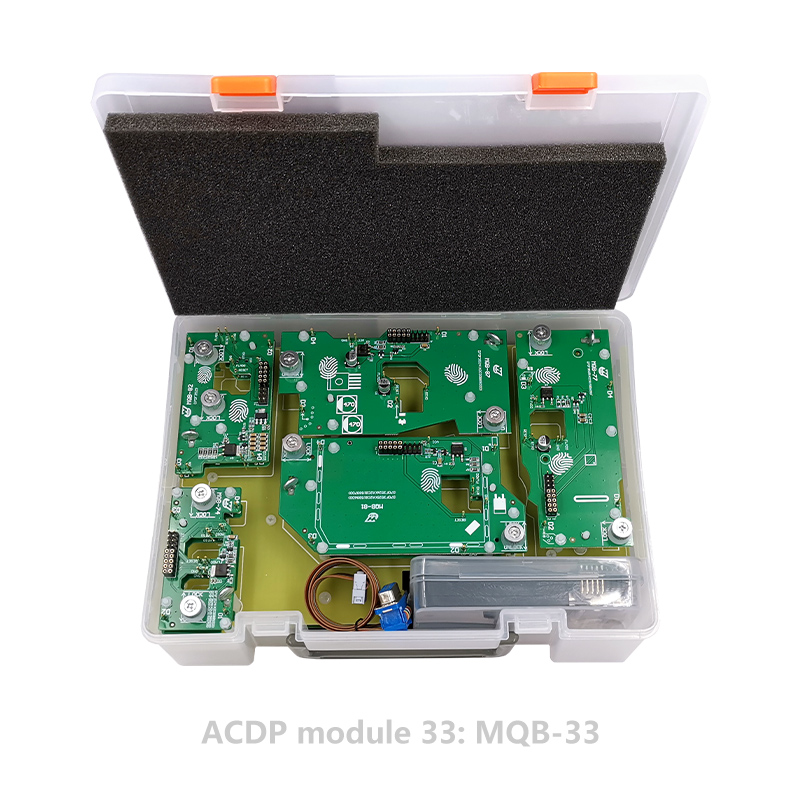

Module 33 – MQB-33 Module
-

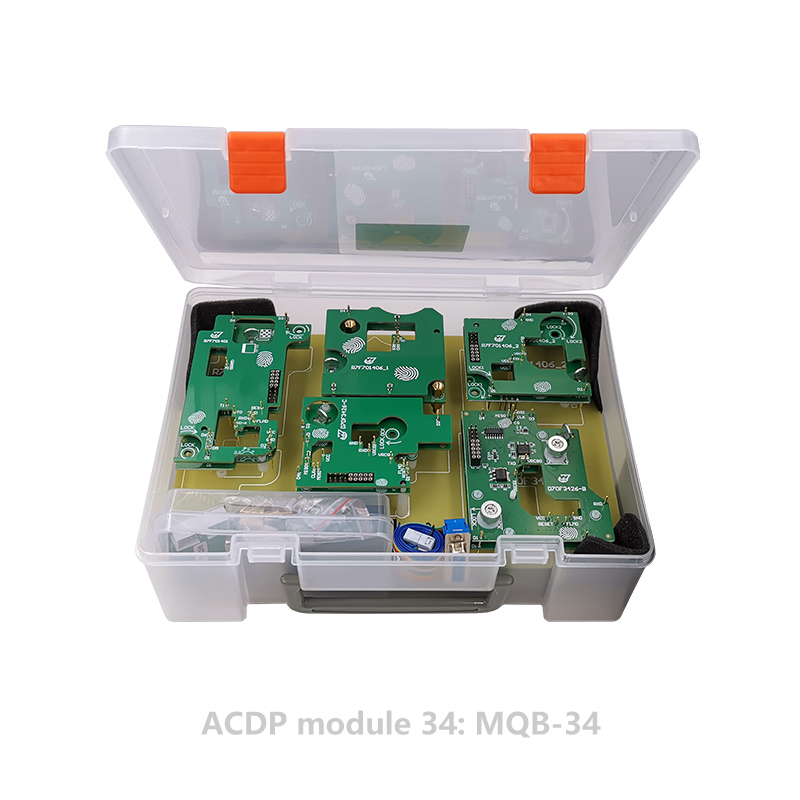

Module 34 – MQB-34 Module
-

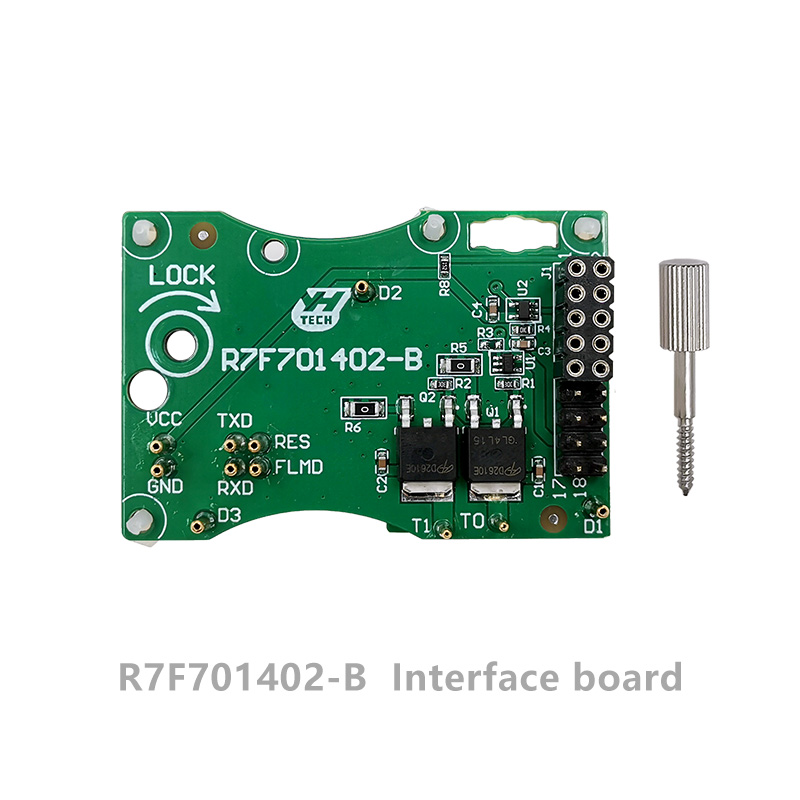

R7F701402-B Interface Board
-

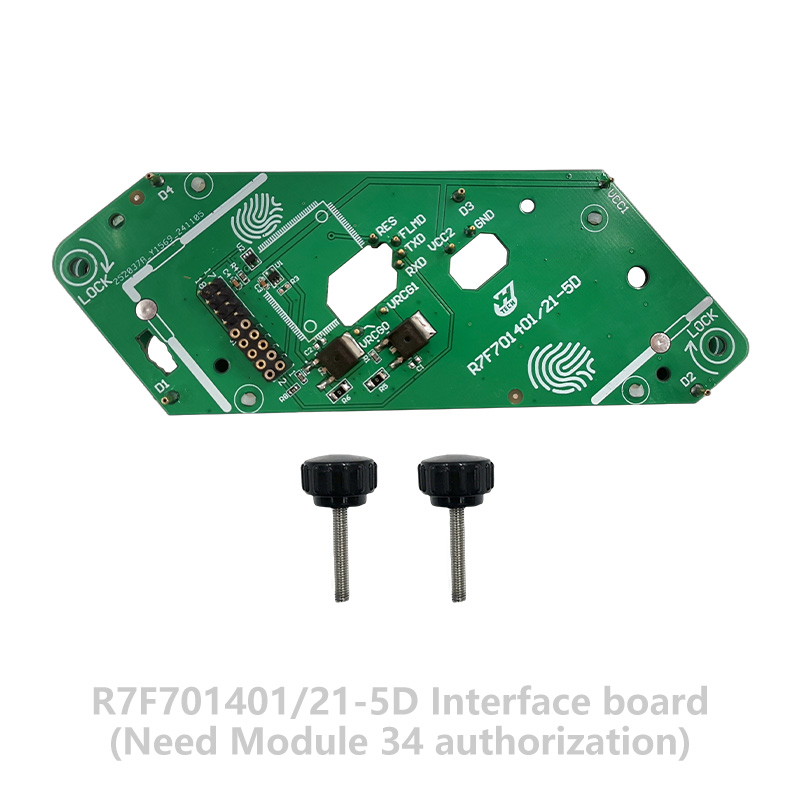

R7F701401/21-5D Interface Board
-

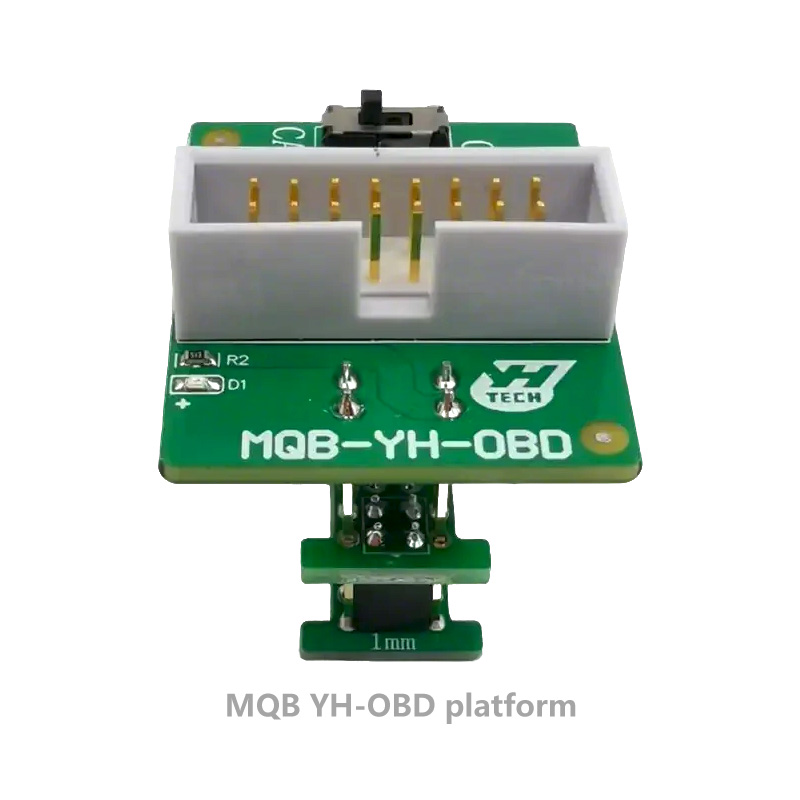

VW MQB YH-OBD Platform
Functions
-
Support IMMO & mileage correction for VW 4th / 4.5th generation & MQB48-5A instruments with chip models: D70F3524, D70F3525, D70F3526, D70F3529, D70F3532, D70F3535, D70F3536, D70F3537.
-
Support IMMO & mileage correction for VW 4th-gen instruments with D70F3423 + 95320 chips.
-
Support IMMO & mileage correction for MQB 5A instruments with D70F3426 + 95128 chips.
-
Support IMMO & mileage correction for RH850 series 5A instruments (R7F701401, R7F701402, R7F701407).
-
Support mileage correction for RH850 series 5C instruments (R7F701401, R7F701402, R7F701404, R7F701405, R7F701406, R7F701407).
-
Support mileage correction for RH850 series 5D instruments (R7F701401, R7F701421).
Configuration List：
ACDP-2 Configuration List (ACDP-2 Programming Module)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
| 1 | ACDP-2 Programmer |  |
1 | |
| 2 | Puncture Socket（With one more plastic part） |  |
Applicable to read and write 8-pin EEPROM data without removing/soldering. Used with 8P cable and 20P cable. | 1 |
| 3 | BAV-KEY adapter |  |
Applicable to identify B_W_M keys, data writing and matching. | 1 |
| 4 | P8P Cable |  |
Applicable to read and write 8-pin EEPROM data via cable connecting. | 1 |
| 5 | 8P Cable |  |
Applicable to connect the 8-PIN interface board of each module. | 1 |
| 6 | 20P Cable |  |
Applicable to connect the ACDP2 host to 20 pin interface board. | 1 |
| 7 | 20P to 8P cable |  |
Applicable to connect the ACDP2 host to 20 pin and 8 pin interface board. | 1 |
| 8 | Android cable |  |
Applicable to connect the ACDP2 host and Android phone. | 1 |
| 9 | IOS cable |  |
Applicable to connect the ACDP2 host and IOS phone. | 1 |
| 10 | PC cable |  |
Applicable to connect the ACDP2 host and PC. | 1 |
| 11 | OBD cable |  |
Applicable to connect the ACDP2 host and vehicle OBD. | 1 |
| 12 | 14V Switch Power Supply |  |
Power the ACDP-2 host. | 1 |
| 13 | OBP2 Switch Power Supply |  |
Applicable to reading 8-pin chip data with or without soldering | 1 |
| 14 | Test Points cleaning probes |  |
Applicable to clean test point three anti-paint. | 1 |
| 15 | Double-head line |  |
Applicable to point-to-point connections. | 1 |
ACDP Configuration List (Module 33 MQB-33)▼
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
| 1 | MQB-74 Interface board |  |
Applicable to connect D70F3524/D70F3525/D70F3526 chip instrument | 1 |
| 2 | MQB-75 Interface board |  |
Applicable to connect D70F3525/D70F3526 chip instrument | 1 |
| 3 | MQB-77 Interface board |  |
Applicable to connect D70F3525 chip instrument | 1 |
| 4 | MQB-78 Interface board |  |
Applicable to connect D70F3525 chip instrument | 1 |
| 5 | MQB-79 Interface board |  |
Applicable to connect D70F3526 chip instrument | 1 |
| 6 | MQB-80 Interface board |  |
Applicable to connect D70F3526 chip instrument | 1 |
| 7 | MQB-81 Interface board |  |
Applicable to connect D70F3525/D70F3526 chip instrument | 1 |
| 8 | MQB-82 Interface board |  |
Applicable to connect D70F3529 chip instrument | 1 |
| 9 | MQB-83 Interface board |  |
Applicable to connect D70F3532 chip instrument | 1 |
| 10 | MQB-84 Interface board |  |
Applicable to connect D70F3532 chip instrument | 1 |
| 11 | MQB-85 Interface board |  |
Applicable to connect D70F3537 chip instrument | 1 |
| 12 | MQB-86 Interface board |  |
Applicable to connect D70F3535/D70F3536/D70F3537 chip instrument | 1 |
| 13 | MQB-87 Interface board |  |
Applicable to connect D70F3524 chip instrument | 1 |
| 14 | PCF-KEY adapter |  |
Applicable to generate MQB dealer keys | 1 |
| 15 | MQB-V2 adapter |  |
Applicable to decrypt MQB instrument | 1 |
| 16 | 20PIN cable |  |
Applicable to connect ACDP host and MQB adapter | 1 |
| 17 | screw |  |
Applicable to fix interface boards | 5 |
ACDP Configuration List (Module 34 MQB-34)▼
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
| 1 | R7F701401 Interface board |  |
Applicable to connect R7F701401 chip instrument | 1 |
| 2 | R7F701402 Interface board |  |
Applicable to connect R7F701402 chip instrument | 1 |
| 3 | R7F701404 Interface board |  |
Applicable to connect R7F701404 chip instrument | 1 |
| 4 | R7F701406_1 Interface board |  |
Applicable to connect R7F701406 chip instrument | 1 |
| 5 | R7F701406_2 Interface board |  |
Applicable to connect R7F701406 chip instrument | 1 |
| 6 | R7F701407 Interface board |  |
Applicable to connect R7F701407 chip instrument | 1 |
| 7 | D70F3423 Interface board |  |
Applicable to connect D70F3423+95320 chip instrument | 1 |
| 8 | D70F3426-A Interface board |  |
Applicable to connect D70F3426+95128 chip instrument | 1 |
| 9 | D70F3426-B Interface board |  |
Applicable to connect D70F3426+95128 chip instrument | 1 |
| 10 | D70F3426-C Interface board |  |
Applicable to connect D70F3426+95128 chip instrument | 1 |
| 11 | PCF-KEY adapter | |
Applicable to generate MQB dealer keys | 1 |
| 12 | MQB-V2 adapter | |
Applicable to decrypt MQB instrument | 1 |
| 13 | 20PIN cable | |
Applicable to connect ACDP host and MQB adapter | 1 |
| 14 | screw |  |
Applicable to fix interface boards | 6 |
